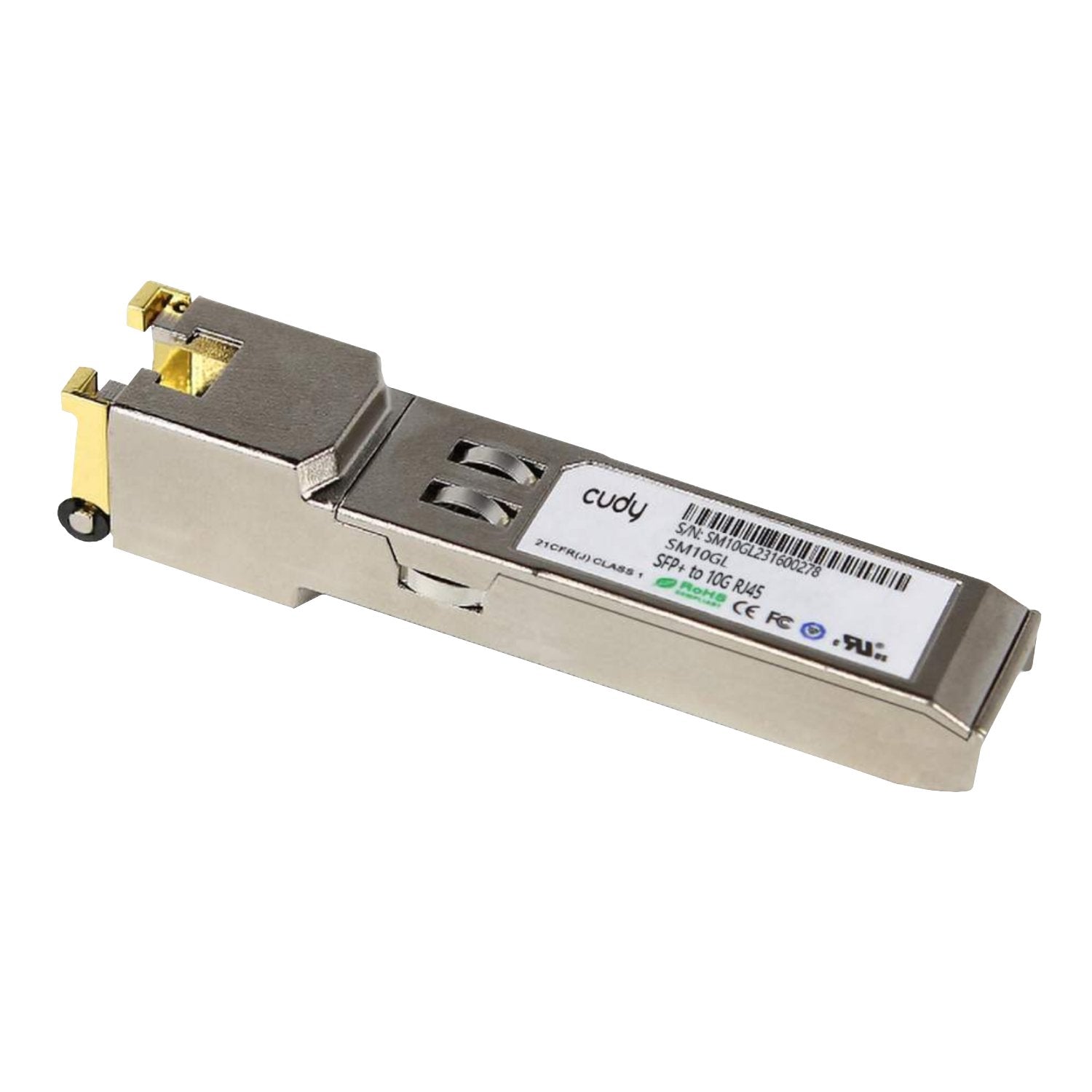

Cudy SM10GL SFP+ to 10G RJ45 Ethernet Module

The Cudy SM10GL SFP+ to 10G RJ45 Ethernet Module delivers blazing-fast, reliable network performance for data centers, enterprise networks, and high-demand work environments. Designed in compliance with the SFP Multi-Source Agreement (MSA), this transceiver supports 10Gbase-T, 5Gbase-T, 2.5Gbase-T, and 1000base-T standards as per IEEE 802.3, ensuring broad compatibility with a wide range of networking equipment. Whether you’re upgrading an existing system or expanding your network capabilities, the SM10GL is built for seamless integration and maximum performance.
This hot-pluggable SFP+ transceiver features a compact RJ45 connector assembly, making it easy to install without system downtime. Supporting 10 Gigabit Ethernet over Cat 6a cabling, it enables cost-effective copper connectivity without compromising on speed. The single +3.3V power supply ensures efficient energy consumption, while compliance with RoHS standards guarantees an environmentally friendly, lead-free build.
Built to handle high-performance networking demands, the Cudy SM10GL offers a data rate of up to 10Gbps with optimised impedance matching for stable transmission. With an operating temperature range of 0°C to +60°C, it is suitable for various deployment scenarios, from enterprise racks to high-traffic server rooms. The robust electrical design includes precise signal integrity control for minimal data loss, ensuring smooth and consistent connectivity even under heavy loads.
Whether you’re running 10G backbone links, high-speed workstations, or NAS systems, the Cudy SM10GL SFP+ to RJ45 Module is the perfect solution for flexible and scalable network upgrades. Offering support for multiple Ethernet speeds, tool-free installation, and outstanding thermal stability, it meets the needs of modern IT infrastructures while providing a cost-efficient alternative to fibre solutions.
FEATURES:

Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T on line port
Support 10Gbase-R on host port
Hot-pluggable SFP footprint
Compact RJ-45 connector assembly
RoHS compliant and lead-free
Single +3.3V power supply
10 Gigabit Ethernet over Cat 6a cable
Ambient Operating temperature: 0°C to +60°C

SPECIFICATIONS:

Connector: RJ45
Data Rate: 10Gbps
Form Factor: SFP
+3.3 V olt Electrical Power Interface:

Supply Current: 800mA(Typ)/ 1000mA(Max)
Input Voltage: 3.13V(Min)/ 3.3V(Typ)/ 3.47V(Max)
Maximum Voltage: 4V

Low-Speed Signals, Electronic Characteristics:

SFP Output LOW (Min/Max): 0/ 0.5V
SFP Output HIGH (Min/Max): host_Vcc -0.5/ host_Vcc + 0.3V
SFP Input LOW (Min/Max): 0/ 0.8V
SFP Input HIGH (Min/Max): 2/ Vcc + 0.3V

High-Speed Electrical Interface, Transmission Line-SFP:

Line Frequency: 125MHz
Tx Output Impedance: 100 Ohm
Rx Input Impedance: 100 Ohm

High-Speed Electrical Interface, Host-SFP:

Single ended data input swing (Min/Max): 250/1200mV
Single ended data output swing (Min/Max): 350/800mV
Rise/Fall Time: 185 psec
Tx Input Impedance: 50 Ohm
Rx Output Impedance: 50 Ohm

Operating Temperature (Min/Max): 0/60°C
Storage Temperature (Min/Max): -40/85°C
Serial Bus Timing, Requirements:

I 2C Clock Rate (Min/Max): 0/ 200 000Hz

Product Dimensions: 6.8 x 1.5 x 1.4 cm

WHAT'S IN THE BOX:

Cudy SM10GL SFP+ to 10G RJ45 Ethernet Module x1
