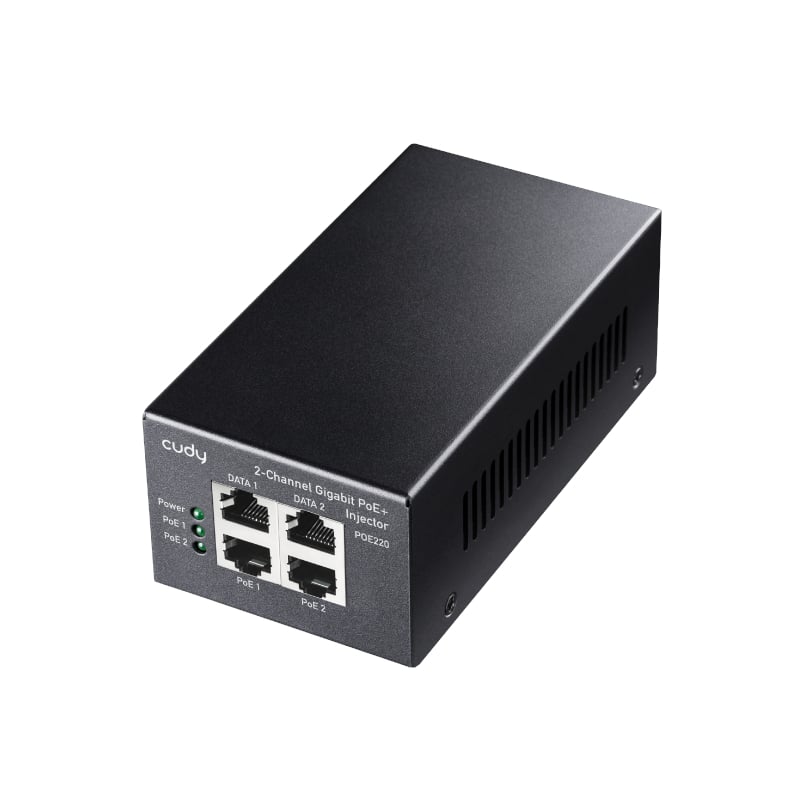

Cudy 2-Channel 30W Gigabit PoE+ Injector

The Cudy POE220 30W Gigabit 2 Channel PoE+/PoE Injector allows you to easily supply power and data to multiple PoE devices. It features 2 Gigabit Ethernet input ports for data and 2 Gigabit PoE output ports. It’s a great option for small surveillance systems or a VOIP phone or a WiFi AP. The Cudy POE220 eliminates the need for an external power supply. This allows you to get rid of its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over your existing Ethernet infrastructure.
The 4 port switch supports 30W total PoE power on the PoE output ports. It complies with IEEE802.3af/at Standard speeds for great performance. The Injector is powered by an AC power adapter and can be easily mounted to a wall.
Used for many applications the Cudy POE220 works with IP Cameras for home, office or small businesses. It also works well with VoIP phones for business conferences and WiFi APs for the office and businesses. Its simple plug and play interface makes it incredibly easy to use.
FEATURES:

Full IEEE 802.3af IEEE 802.3at Compliant
Up to 30W of power output on 2-pairs for per port
Auto-detect of POE IEEE 802.3af IEEE 802.3at equipment
Supports 10/100/1000Base-T applications
LED indicators AC power input and POE output
Distance up to 100 meters
Internal AC/DC converter – no need for an external power brick
Easy plug-and-play installation
Surge protection

SPECIFICATIONS:

No. of channels: 2
Pass-through Data Rates: 10/100/1000Mbps
Power over Ethernet Output:

Pin Assignment and Polarity:

1/2 (-), 3/6 (+),
Output Power Voltage: 54Vdc
User Port Power: Up to 30W per port

Input Power Requirements:

AC Input Voltage: 100 to 240 Vac
AC Input Current: 0.8A 100-240 Vac
AC Frequency: 50 to 60 Hz

Indicators:

System Indicator: AC Power
User Indicator: Channel Power

Connectors: Shielded RJ-45, EIA 568A and 568B
Regulatory Compliance:

IEEE 802.3af (15.4W)
IEEE 802.3at (30W)

Product Dimensions: 13.1 x 7 x 4 cm
Product Weight: 420g

WHAT'S IN THE BOX:

Cudy POE220 30W Gigabit 2 Channel PoE+/PoE Injector - Black x1
Power Adapter x1
